Bolt Head Trimming Machine – Tools & Setup

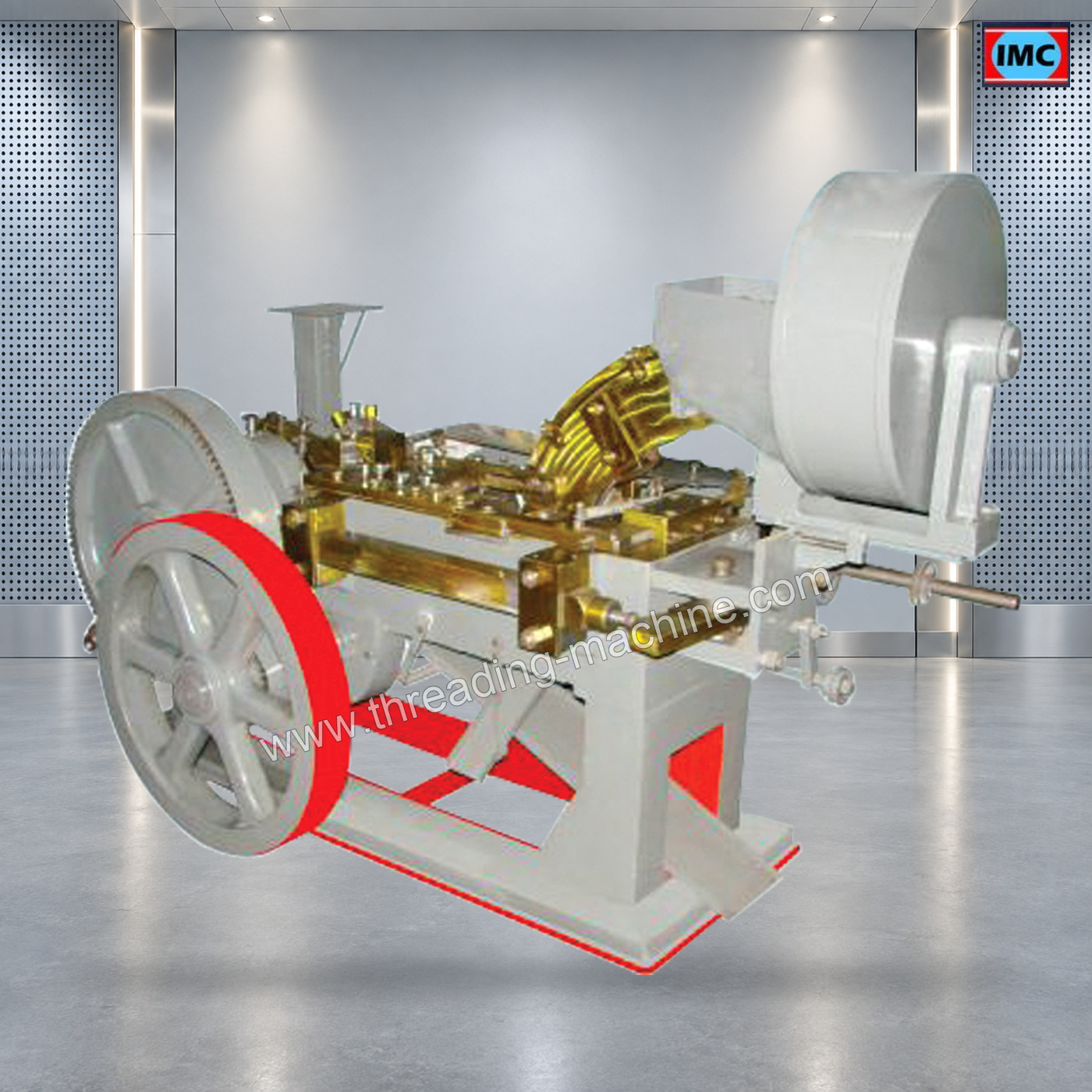

Automatic Bolt Head Trimming Machine by Industrial Machinery Corporation

Automatic Bolt Head Trimming Machine by Industrial Machinery Corporation thumbnail

Review Bolt Head Trimming Machine for your component and the required production operation.

Start with the tooling interface

To trim bolt heads and prepare the specified shank reduction with suitable tooling, the proposed machine and tooling must suit the complete component requirement. Review the trimming or reducing tools required, blank orientation and feeding setup. Existing tools should be identified by model, dimensions or a sample rather than only a familiar name.

Set up around the finished drawing

Provide incoming blank dimensions, finished head profile, shank diameter and material. Discuss how the component is presented and what adjustments are required when a size changes. Distinguish head trimming from shank reduction in the drawing and ask which operations the quoted tooling performs. Ask which fixtures or tool sets are included for the initial job and whether the remaining sizes need additional equipment.

Verify the trial and specify the offer

Check a representative result for head dimensions, reduced shank size and the prepared blank for the next operation. Identify the measurement or inspection requirements with the drawing. A trial should use the intended material and stock condition so that setup decisions apply to the real job. Include batch quantities, site utilities and delivery details with the selected quotation options. The offer should state the model, tooling, accessories and changeover arrangements against those requirements.

Information to send with your enquiry

Incoming blank dimensions
Finished head profile
Shank diameter and material

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Available options

Select the required options and add this machine to your quotation.

Available Options

Maximum Length Required

Min And Max Diameter of the Job

Model No You Are Interested

Expected Price

Purchase

Your selected configuration is stored in the existing Quote List flow for review before enquiry.

VIDEO REFERENCE

Machine Videos Gallery

No product-specific playlist is stored for this item yet. View IMC machine demonstrations and production videos in the main gallery.

View Machine Videos

TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

IMC Automatic Bolt Head Trimming Machine – a state-of-the-art solution designed to optimize your bolt production process and elevate your manufacturing efficiency.

With its advanced technology and precision engineering, this machine is specifically built to streamline the bolt head trimming operation, saving you valuable time and resources.

The IMC Automatic Bolt Head Trimming Machine offers unparalleled accuracy and consistency, ensuring uniform bolt head dimensions throughout your production line. Say goodbye to manual trimming methods that are prone to human error and hello to a reliable automated solution.

Equipped with user-friendly controls and a robust interface, this machine simplifies the trimming process, making it easy for operators of all skill levels to operate. Its intuitive design allows for quick setup and minimal downtime, maximizing your productivity.

The machine's high-speed operation guarantees fast and efficient trimming, enabling you to meet demanding production targets without compromising quality. Its cutting-edge features enable precise trimming of bolt heads, resulting in a clean finish and uniform appearance.

Built to withstand the rigors of industrial environments, the IMC Automatic Bolt Head Trimming Machine boasts a sturdy construction and durable components, ensuring long-lasting performance and reliability. Its low maintenance requirements further contribute to its cost-effectiveness.

By investing in the IMC Automatic Bolt Head Trimming Machine, you gain a competitive edge in the industry, as it empowers you to produce high-quality bolts with speed, precision, and consistency. Upgrade your manufacturing process today and experience the transformative impact of this cutting-edge machine on your operations.

Automatic Bolt Head Trimming Machine Specifications:

Model No.	Length Of Bolt	Dia. Of Bolt	Production Per Minute	Power Required (H.P x RPM)
IMC-HTM-1	1/2" - 1"	80-85	80 - 90	1 x 1440
IMC-CHM-2.5	1/2" - 2"	70-75	60 - 80	3 x 1440
IMC-CHM-3	3/4" - 3"	60-65	50 - 60	5 x 1440
IMC-CHM-4	1" - 4"	45-50	40 - 45	7.5 x 1440
IMC-CHM-5	1.5" - 5"	35-40	30 - 35	15 x 1440
IMC-CHM-6	2" - 6"	25-30	25 - 30	20 x 1440

Frequently Asked Questions About Automatic Bolt Head Trimming Machine

Which job information helps IMC assess automatic bolt head trimming machine?

Please identify incoming blank and final bolt dimensions. Add the finished drawing, expected batch size and available electrical supply. IMC can then discuss the model and the supporting equipment for that particular job.

What should the supply discussion cover for automatic bolt head trimming machine?

Agree the configuration against incoming blank and final bolt dimensions, then confirm the tooling, workholding and accessories included. Any support, installation or spare-tool needs should be listed with the enquiry so the scope is clear.

How can I compare the automatic bolt head trimming machine with my existing process?

Use the specifications and demonstration videos alongside your current component drawing. Record incoming blank and final bolt dimensions, the stages before and after this operation, and your desired output; that comparison gives IMC a useful basis for reviewing the change.
