Cuplock Welding Machine

Cuplock Welding Machine by Industrial Machinery Corporation

Cuplock Welding Machine by Industrial Machinery Corporation thumbnail

Review Cuplock Welding Machine for your component and the required production operation.

Start with the tooling interface

To weld the specified cups and lock pins on scaffolding vertical pipe assemblies, the proposed machine and tooling must suit the complete component requirement. Review the cup positions, pipe clamping and the welding configuration supplied. Existing tools should be identified by model, dimensions or a sample rather than only a familiar name.

Set up around the finished drawing

Provide pipe dimensions, cup spacing, pin locations, assembly length and weld drawing. Discuss how the component is presented and what adjustments are required when a size changes. Distinguish initial cup positioning and tacking from final cup welding when planning the cuplock production route. Ask which fixtures or tool sets are included for the initial job and whether the remaining sizes need additional equipment.

Verify the trial and specify the offer

Check a representative result for cup and pin alignment together with the specified weld acceptance. Identify the measurement or inspection requirements with the drawing. A trial should use the intended material and stock condition so that setup decisions apply to the real job. Include batch quantities, site utilities and delivery details with the selected quotation options. The offer should state the model, tooling, accessories and changeover arrangements against those requirements.

Information to send with your enquiry

Pipe dimensions
Cup spacing
Pin locations
Assembly length and weld drawing

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Available options

Select the required options and add this machine to your quotation.

Available Options

Maximum Length Required

Min And Max Diameter of the Job

Expected Price

Purchase

Your selected configuration is stored in the existing Quote List flow for review before enquiry.

Product Videos

View full playlist on YouTube

Scaffolding Prop Nut Cup Handle Welding Machine

Scaffolding Prop Nut Cup Handle Welding Machine Manufacturer & Exporter

Scaffolding Prop Nut Cup Handle Welding Machine - IMC

TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

The name Industrial Machinery Corporation is ranked in the top ten manufacturers and exporters of welding machines owing to the best quality welding machinery that we have manufactured which is popular all over the world. We have been in the business of production and export of welding machines for more than a decade now and have all the knowledge that is required to be the top manufacturer and exporter. Industrial Machinery Corporation has gained a huge name as an expert in manufacturing Cup lock Welding Machines and this is true too, as we truly have the best team and set-up to manufacture Cup lock Welding Machines. One of the best-known welding machines that we make here is Cuplock Welding Machine. We make these Cup lock Welding Machines with utmost care and considering all the types of jobs, the user would want to accomplish using it. To meet the variegated demands of our esteemed clients, we are engaged in manufacturing and exporting an exclusive range of Cuplock Welding Machines.

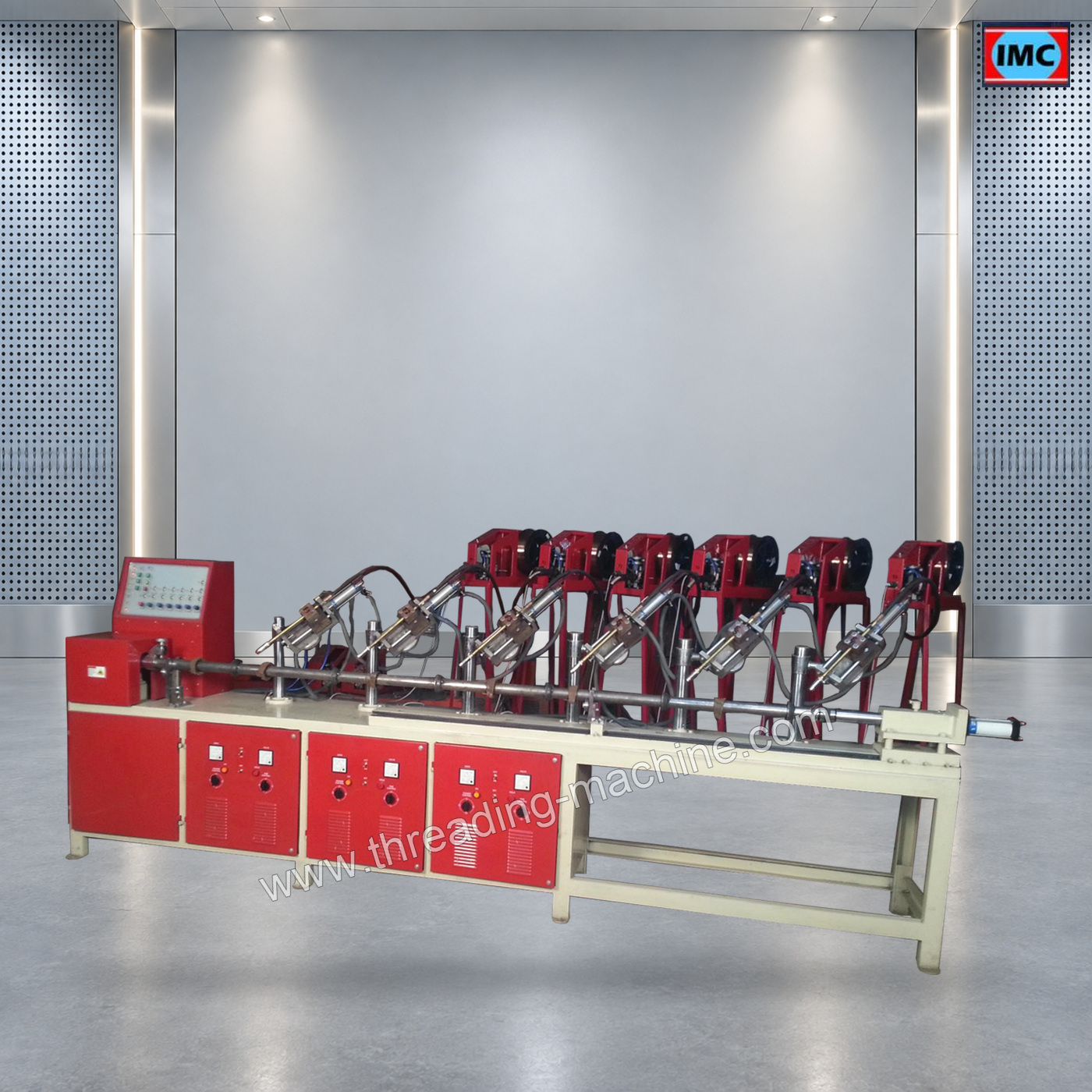

This special machine is for scaffolding Cuplock Welding Machine and the pipe with Cups and lock pins automatic welding. The equipment makes use of advanced programmable control technology to Finish welding in one-time, improve production efficiency, and reduce labor intensity, and welding effect to meet. We are proud of our Cuplock Welding Machines which is considered the best in terms of quality, robust design, durability, compatibility, adaptability, strength, and prices.

This system is based on Circular welding on Cups with Pipe from three positions of cups for the Fastest production and Uniform Welding and it helps the operator be safe from burning skin of the continuous welding process, By using this machine one can save the Consumption of CO2 Gas and weld with proper welding thickness on every single job as per standard required and the production out comes will help them to be competitive in market by fastest supply, clean and safe process of welding.

Specifications:-

Input voltage		3- phase 380-415 V 300A
Control system input voltage		3- phase 380-415 V
Control system		1kw
Motor power		.86 kW
Speed		6-25 s/round
Poling		1-3 m (2-6 pics)
Welding torch distance		500 mm
Motion way		Pneumatic
Welding angle		0-600 Degree
Maximum workpiece number		6 pics
Dimension		3900X800X1700 mm
Machine area		4.5X3.5m
Weight		1.5T

Frequently Asked Questions About Cuplock Welding Machine

Which job information helps IMC assess cuplock welding machine?

Please identify cup spacing, tube size and assembly drawing. Add the finished drawing, expected batch size and available electrical supply. IMC can then discuss the model and the supporting equipment for that particular job.

What should the supply discussion cover for cuplock welding machine?

Agree the configuration against cup spacing, tube size and assembly drawing, then confirm the tooling, workholding and accessories included. Any support, installation or spare-tool needs should be listed with the enquiry so the scope is clear.

How can I compare the cuplock welding machine with my existing process?

Use the specifications and demonstration videos alongside your current component drawing. Record cup spacing, tube size and assembly drawing, the stages before and after this operation, and your desired output; that comparison gives IMC a useful basis for reviewing the change.
