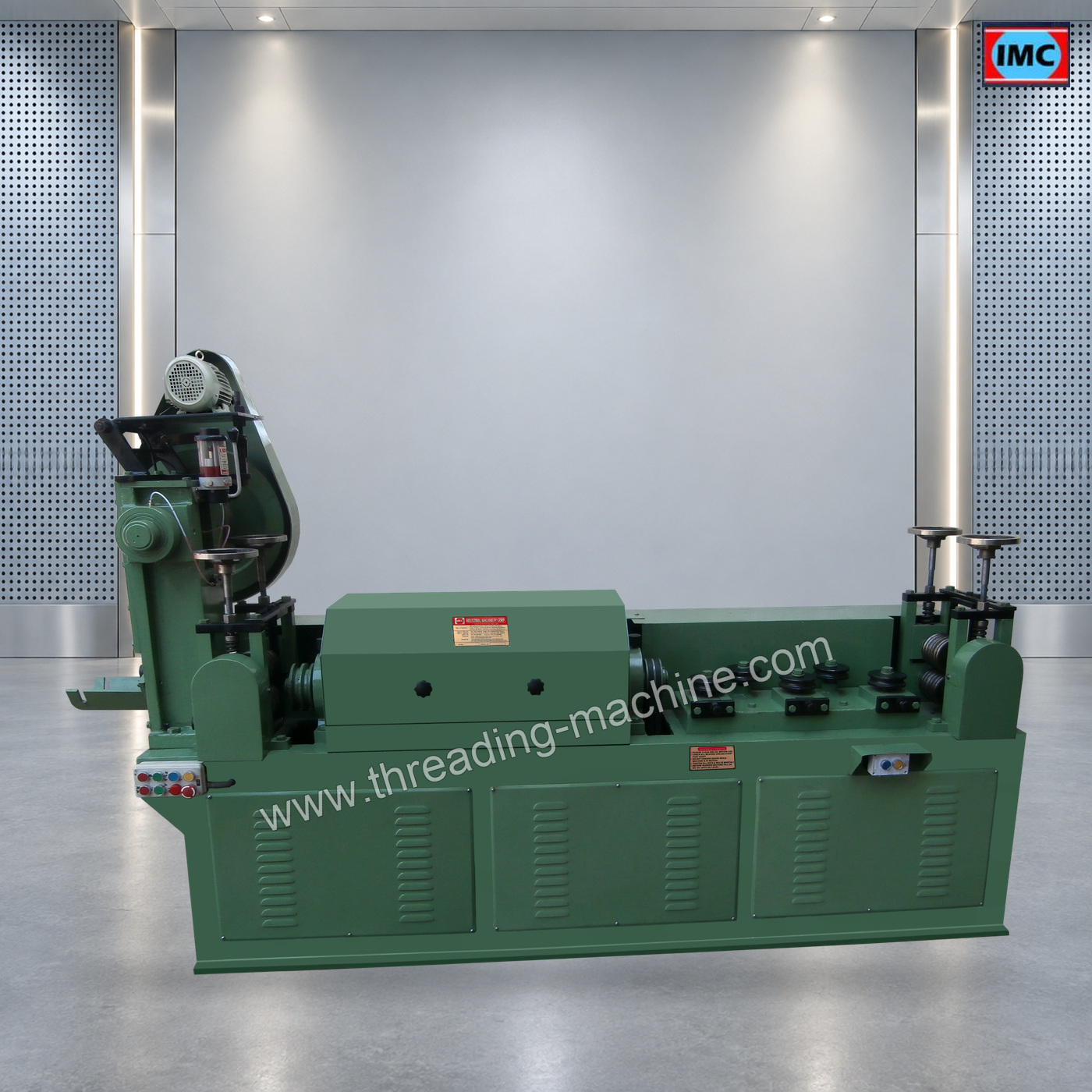

Wire Straightening And Cutting Machine by Industrial Machinery Corporation

Wire Straightening And Cutting Machine by Industrial Machinery Corporation thumbnail

Wire Straightening And Cutting Machine by Industrial Machinery Corporation additional view 1

Wire Straightening And Cutting Machine by Industrial Machinery Corporation additional view 2

Wire Straightening And Cutting Machine by Industrial Machinery Corporation additional view 3

Wire Straightening And Cutting Machine by Industrial Machinery Corporation additional view 4

Wire Straightening And Cutting Machine by Industrial Machinery Corporation additional view 5

Wire Straightening And Cutting Machine by Industrial Machinery Corporation additional view 6

Wire Straightening And Cutting Machine by Industrial Machinery Corporation additional view 7

Wire Straightening And Cutting Machine by Industrial Machinery Corporation additional view 8

Wire Straightening And Cutting Machine by Industrial Machinery Corporation additional view 9

Review Wire & Coil Bar Straightening Machine for your component and the required production operation.

Start with the tooling interface

To straighten suitable wire, coil rod or coil bar and cut it to specified lengths, the proposed machine and tooling must suit the complete component requirement. Review coil handling, straightening settings, feeding and the cutting arrangement. Existing tools should be identified by model, dimensions or a sample rather than only a familiar name.

Set up around the finished drawing

Provide material grade, stock diameter, coil condition, cut length and straightness requirement. Discuss how the component is presented and what adjustments are required when a size changes. Coil rod and coil bar compatibility must be assessed against the actual material and section rather than their names alone. Ask which fixtures or tool sets are included for the initial job and whether the remaining sizes need additional equipment.

Verify the trial and specify the offer

Check a representative result for cut length, straightness and the surface condition of the finished pieces. Identify the measurement or inspection requirements with the drawing. A trial should use the intended material and stock condition so that setup decisions apply to the real job. Include batch quantities, site utilities and delivery details with the selected quotation options. The offer should state the model, tooling, accessories and changeover arrangements against those requirements.

Information to send with your enquiry

Material grade
Stock diameter
Coil condition
Cut length and straightness requirement

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Available options

Select the required options and add this machine to your quotation.

Available Options

Maximum Length Required

Min And Max Diameter of the Job

Quantity Required

Expected Price

Purchase

Your selected configuration is stored in the existing Quote List flow for review before enquiry.

Product Videos

View full playlist on YouTube

IMC-ST-10 Automatic Wire Cutting and Straightening System

Wire | Rod straightening and cutting machine

IMC Wire Straightening and Cutting Machine 16MM 6M Long Manufacturer, Exporter Punjab, India

Wire Straightening and Cutting Machine 16MM | Industrial Production

Wire Straightening and Cutting Machine 16MM 6M Long Length Manufacturer India

Wire Rod Straightening and Cutting Machine | High-Precision Solutions by IMC

TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

The main characteristics of this Wire Straightening Cutting Machine are a modern design, low maintenance, and high throughput. These machines are available in various capacities that depend upon the thickness, weight, speed, and length of the wire.

In addition to this, it is more effective, efficient and easy to use for longer life. We always used the latest and advance technology for the manufacture of these cutting machines. With the help of Wire Straightening and Cutting Machine 's, we cut a different variety of materials such as Mild steel, EN8, SS 316, SS 304, SS 202, Brass, Copper, Rebar, Aluminum and Spring steels. These machines are powerful which is fixed with straightening device as well as with cutting device that makes a perfect machine for the correct operation. Mostly these machines are used in automobile industries, Electrical industries, Metal processing industries and many other types of metal fabrication work. These machines are manufactured in our Ludhiana Unit under very strict quality control. Moreover, we always fulfill the requirements of the customers as providing the high-quality machinery within the budget also.

Specifications :	IMC-ST-7	IMC-ST-8	IMC-ST-10	IMC-ST-12	IMC-ST-13
In Thickness of wire	2 to 7mm	3 to 8mm	4 to 10mm	4 to 12mm	3 to 13mm
In Length of wire to be cut automatically	As per Requirement	As per Requirement	As per Requirement	As per Requirement	As per Requirement
Feeding capacity per min.	70' feet	70' feet	70' feet	60' feet	60' feet
Power of motor H.P.	3 H.P.	5 H.P.	5 H.P.	10 H.P.	10 H.P.
Required R.P.M.	1440	1440	1440	1440	1440
Approx. Weight in Kg.	410	460	550	1000	1200
Floor space required	42"x18"	48"x20"	52"x20"	60"x22"	82"x22"

Specifications :	IMC-ST-14	IMC-ST-15	IMC-ST-16	IMC-ST-20	IMC-ST-25
In Thickness of wire	5 to 14mm	6 to 15mm	8 to 16mm	10 to 20mm	15 to 25mm
In Length of wire to be cut automatically	As per Requirement	As per Requirement	As per Requirement	As per Requirement	As per Requirement
Feeding capacity per min.	60' feet	60' feet	60' feet	60' feet	40' feet
Power of motor H.P.	10 H.P.	15 H.P.	15 H.P.	25 H.P.	30 H.P.
Required R.P.M.	1440	1440	1440	1440	1440
Approx. Weight in Kg.	1300	1500	2500	3000	3500
Floor space required	91"x22"	105"x24"	125"x24"	150"x27"	180"x36"

Frequently Asked Questions About Wire Straightening And Cutting Machine

Which job information helps IMC assess wire straightening and cutting machine?

Please identify wire grade, coil condition and cut length. Add the finished drawing, expected batch size and available electrical supply. IMC can then discuss the model and the supporting equipment for that particular job.

What should the supply discussion cover for wire straightening and cutting machine?

Agree the configuration against wire grade, coil condition and cut length, then confirm the tooling, workholding and accessories included. Any support, installation or spare-tool needs should be listed with the enquiry so the scope is clear.

How can I compare the wire straightening and cutting machine with my existing process?

Use the specifications and demonstration videos alongside your current component drawing. Record wire grade, coil condition and cut length, the stages before and after this operation, and your desired output; that comparison gives IMC a useful basis for reviewing the change.
