Prop Nut Cup Handle Welding – Fixtures & Setup

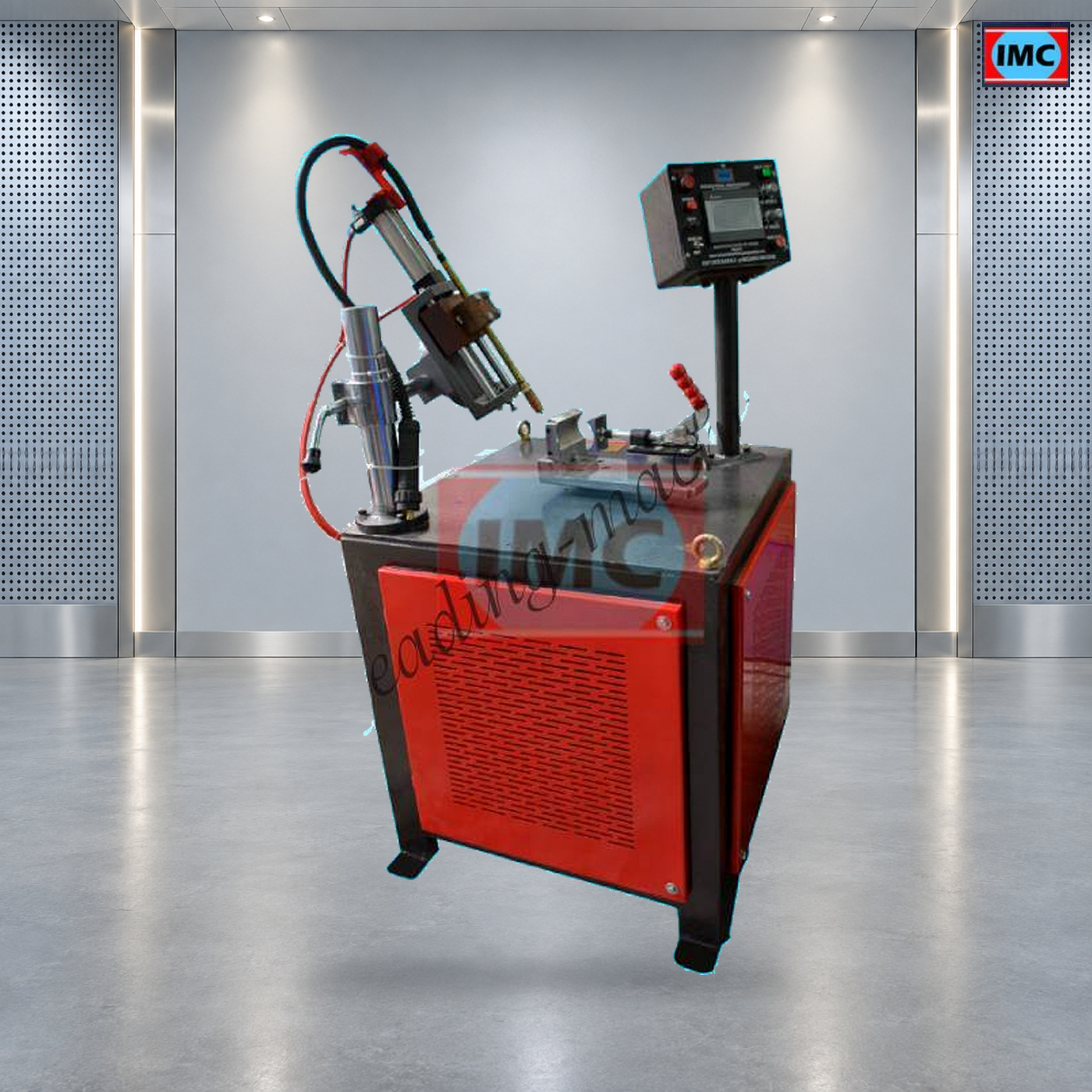

Scaffolding Prop Nut Cup Handle Welding Machine by Industrial Machinery Corporation

Scaffolding Prop Nut Cup Handle Welding Machine by Industrial Machinery Corporation thumbnail

Review Prop Nut Cup Handle Welding for your component and the required production operation.

Start with the tooling interface

To weld the required handle to a compatible scaffolding prop nut or cup assembly, the proposed machine and tooling must suit the complete component requirement. Review component locating fixtures, clamping and welding access around the handle. Existing tools should be identified by model, dimensions or a sample rather than only a familiar name.

Set up around the finished drawing

Provide nut or cup dimensions, handle shape, joint locations and weld drawing. Discuss how the component is presented and what adjustments are required when a size changes. Show the receiving nut or cup and handle separately so the fixture can be reviewed against both parts. Ask which fixtures or tool sets are included for the initial job and whether the remaining sizes need additional equipment.

Verify the trial and specify the offer

Check a representative result for handle position, assembly fit and the required weld acceptance. Identify the measurement or inspection requirements with the drawing. A trial should use the intended material and stock condition so that setup decisions apply to the real job. Include batch quantities, site utilities and delivery details with the selected quotation options. The offer should state the model, tooling, accessories and changeover arrangements against those requirements.

Information to send with your enquiry

Nut or cup dimensions
Handle shape
Joint locations and weld drawing

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Available options

Select the required options and add this machine to your quotation.

Available Options

Purchase

Expected Price

Your selected configuration is stored in the existing Quote List flow for review before enquiry.

Product Videos

View full playlist on YouTube

Scaffolding Prop Nut Cup Handle Welding Machine

Scaffolding Prop Nut Cup Handle Welding Machine Manufacturer & Exporter

Scaffolding Prop Nut Cup Handle Welding Machine - IMC

TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

Are you seeking a reliable and high-performance welding solution for scaffolding prop nut cup handles?

Look no further than IMC, a leading manufacturer and exporter of construction machinery. Our Scaffolding Prop Nut Cup Handle Welding Machine is designed to streamline the welding process, ensuring durability and precision in every weld.

Key Features:

Automated Welding Process:

The IMC Scaffolding Prop Nut Cup Handle Welding Machine automates the welding process, reducing manual labor and increasing production efficiency. This allows for consistent and high-quality welds on each scaffolding prop nut cup handle.

Precision Welding Technology:

Benefit from advanced welding technology that ensures precision and accuracy in every weld. Our machine is equipped with features that guarantee uniform and robust welds, meeting the stringent quality standards of the scaffolding industry.

Versatile Cup Handle Compatibility:

Designed to accommodate a variety of scaffolding prop nut cup handle sizes and designs, our welding machine offers versatility to meet the diverse needs of scaffolding component manufacturing.

User-Friendly Interface:

Simplify the welding process with an intuitive and user-friendly interface. Operators can easily set welding parameters, monitor the welding progress, and make adjustments as needed, reducing the learning curve for your team.

High Welding Speed:

Increase production output with the high welding speed of our machine. This feature is crucial for meeting tight project deadlines and ensuring a smooth workflow in your manufacturing facility.

Durable Construction:

Built with durability in mind, our Scaffolding Prop Nut Cup Handle Welding Machine is constructed using high-quality materials. This ensures a long service life, minimizing downtime and maintenance costs.

Safety Measures:

Prioritizing the safety of operators, our machine incorporates safety features to create a secure working environment. These features contribute to accident prevention and overall workplace safety.

Space-Efficient Design:

Optimize your workspace with the compact and efficient design of our welding machine. It is engineered to fit seamlessly into your production facility, maximizing floor space utilization.

Choose IMC as your trusted partner in scaffolding machinery, and experience the difference that precision welding and automation can make in your manufacturing process. Contact us today to enhance your scaffolding component production with IMC's Scaffolding Prop Nut Cup Handle Welding Machine.

Frequently Asked Questions About Scaffolding Prop Nut Cup Handle Welding Machine

Which job information helps IMC assess scaffolding prop nut cup handle welding machine?

Please identify handle shape and nut or cup dimensions. Add the finished drawing, expected batch size and available electrical supply. IMC can then discuss the model and the supporting equipment for that particular job.

What should the supply discussion cover for scaffolding prop nut cup handle welding machine?

Agree the configuration against handle shape and nut or cup dimensions, then confirm the tooling, workholding and accessories included. Any support, installation or spare-tool needs should be listed with the enquiry so the scope is clear.

How can I compare the scaffolding prop nut cup handle welding machine with my existing process?

Use the specifications and demonstration videos alongside your current component drawing. Record handle shape and nut or cup dimensions, the stages before and after this operation, and your desired output; that comparison gives IMC a useful basis for reviewing the change.
