Scaffolding Cup & Sleeve Making – Tooling & Setup

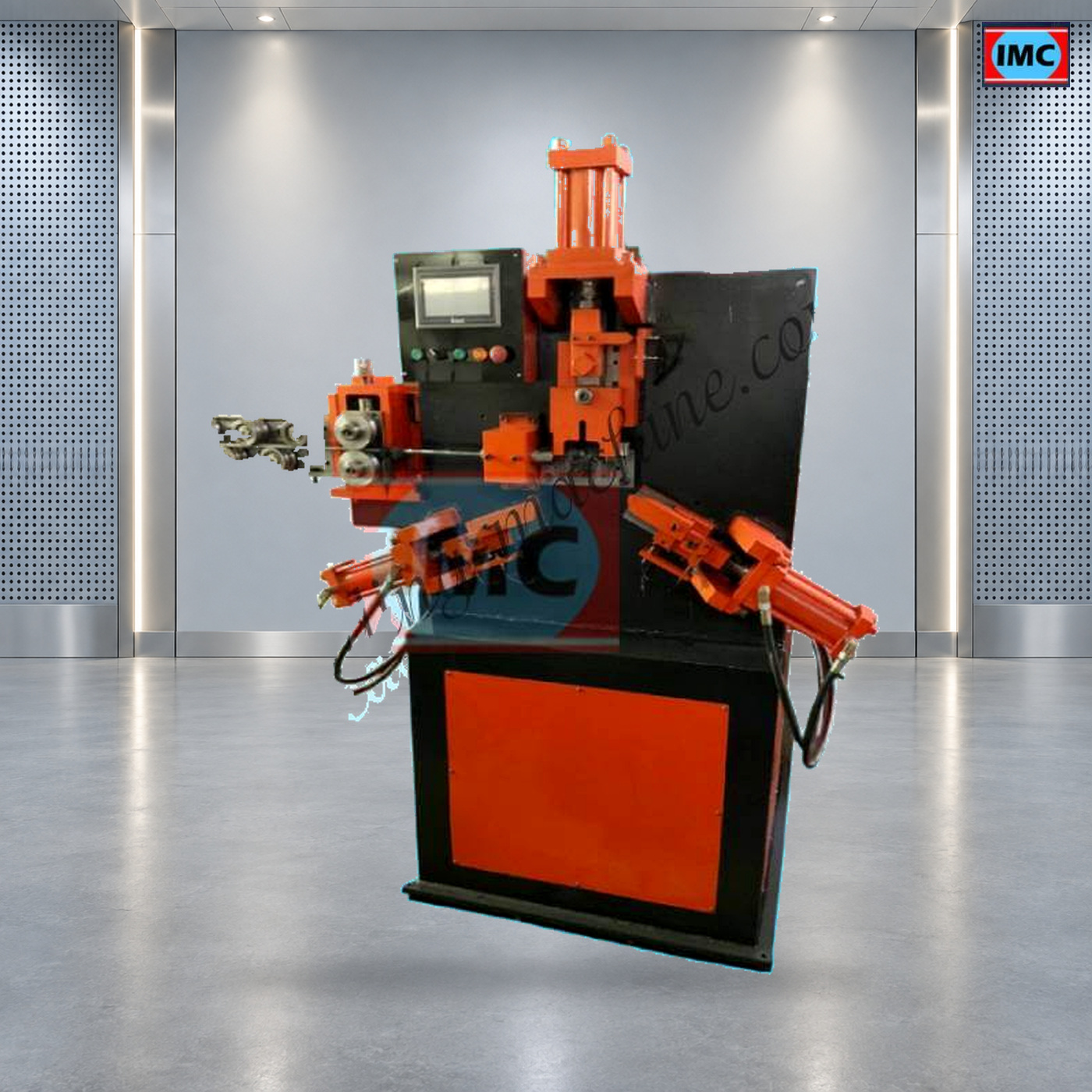

Scaffolding Cup Sleeve Nut Handle & G Pin Making Machine product view

Scaffolding Cup Sleeve Nut Handle & G Pin Making Machine product view thumbnail

Review Scaffolding Cup & Sleeve Making for your component and the required production operation.

Start with the tooling interface

To make the specified scaffolding cups, sleeves, nut handles or G pins with component-specific tooling, the proposed machine and tooling must suit the complete component requirement. Review the forming or cutting operations, feeding arrangement and tool set for each component. Existing tools should be identified by model, dimensions or a sample rather than only a familiar name.

Set up around the finished drawing

Provide a separate drawing for each fitting, material grade, stock section and batch mix. Discuss how the component is presented and what adjustments are required when a size changes. Different fittings require different process and tool arrangements; do not assume all parts are made simultaneously with one unchanged setup. Ask which fixtures or tool sets are included for the initial job and whether the remaining sizes need additional equipment.

Verify the trial and specify the offer

Check a representative result for finished shapes, assembly fit and the inspection defined for each accessory. Identify the measurement or inspection requirements with the drawing. A trial should use the intended material and stock condition so that setup decisions apply to the real job. Include batch quantities, site utilities and delivery details with the selected quotation options. The offer should state the model, tooling, accessories and changeover arrangements against those requirements.

Information to send with your enquiry

A separate drawing for each fitting
Material grade
Stock section and batch mix

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Available options

Select the required options and add this machine to your quotation.

Available Options

Purchase

Expected Price

Your selected configuration is stored in the existing Quote List flow for review before enquiry.

Product Videos

View full playlist on YouTube

Scaffolding Cup Sleeve Nut Handle and G Pin Making Machine Elevate Your Manufacturing

Automatic Scaffolding Nut Handle Machine | How It Works

Automatic Scaffolding Prop G Pin Making Machine

Automatic Scaffolding Cup Sleeve Nut Handle & G Pin Making Machine - Streamline Your Manufacturing

Automatic Scaffolding Cup Sleeve Nut Handle and G Pin Making Machine - High Quality Machinery

AutoG-Pin Master: Automated Scaffolding Prop G Pin Making Machine

TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

Are you in search of an advanced and automated solution for producing scaffolding cup sleeve nuts, handles, and G pins?

Look no further than IMC, a leading manufacturer and exporter of construction machinery. Our Automatic Scaffolding Cup Sleeve Nut Handle & G Pin Making Machine is designed to enhance efficiency, precision, and versatility in the manufacturing process.

Key Features:

Multi-Function Capability:

The IMC Automatic Scaffolding Cup Sleeve Nut Handle & G Pin Making Machine is a versatile solution that can produce various scaffolding components, including cup sleeve nuts, handles, and G pins. This multi-function capability streamlines your production process and reduces the need for multiple machines.

Automated Production Process:

Enjoy the benefits of automation with our machine. It is designed to automate the entire production process, from material feeding to the finished product. This not only increases efficiency but also reduces labor costs and minimizes the risk of errors.

Precision Manufacturing:

Benefit from precision engineering and advanced technology that ensures the accurate and consistent production of high-quality scaffolding components. This is essential for meeting industry standards and providing reliable products to your clients.

Customisation Options:

Adapt to varying project requirements with ease. Our machine allows for easy adjustment of parameters to accommodate different sizes and specifications for cup sleeve nuts, handles, and G pins. This customization capability adds flexibility to your manufacturing process.

User-Friendly Interface:

The machine features an intuitive and user-friendly interface, making it easy for operators to set parameters, monitor the production process, and make adjustments as needed. This reduces training time and enhances overall operational efficiency.

High Production Speed:

Meet demanding project timelines with the high production speed of our machine. The automated processes enable faster production cycles, allowing you to fulfill orders promptly and maintain a competitive edge in the market.

Durable Construction:

Built with durability in mind, our Automatic Scaffolding Cup Sleeve Nut Handle & G Pin Making Machine is constructed using high-quality materials. This ensures a robust and reliable machine that can withstand continuous industrial use, minimizing downtime and maintenance costs.

Safety Features:

Operator safety is a top priority. The machine incorporates essential safety features to create a secure working environment, ensuring the well-being of your team throughout the production process.

Choose IMC as your trusted partner in scaffolding machinery, and experience the efficiency, precision, and versatility that our Automatic Scaffolding Cup Sleeve Nut Handle & G Pin Making Machine brings to your manufacturing process. Contact us today to elevate your scaffolding component production with IMC's cutting-edge machinery.

Frequently Asked Questions About Scaffolding Cup Sleeve Nut Handle & G Pin Making Machine

Which job information helps IMC assess scaffolding cup sleeve nut handle & g pin making machine?

Please identify the cup, sleeve, handle or pin drawing. Add the finished drawing, expected batch size and available electrical supply. IMC can then discuss the model and the supporting equipment for that particular job.

What should the supply discussion cover for scaffolding cup sleeve nut handle & g pin making machine?

Agree the configuration against the cup, sleeve, handle or pin drawing, then confirm the tooling, workholding and accessories included. Any support, installation or spare-tool needs should be listed with the enquiry so the scope is clear.

How can I compare the scaffolding cup sleeve nut handle & g pin making machine with my existing process?

Use the specifications and demonstration videos alongside your current component drawing. Record the cup, sleeve, handle or pin drawing, the stages before and after this operation, and your desired output; that comparison gives IMC a useful basis for reviewing the change.
