Pipe End Facing Machine

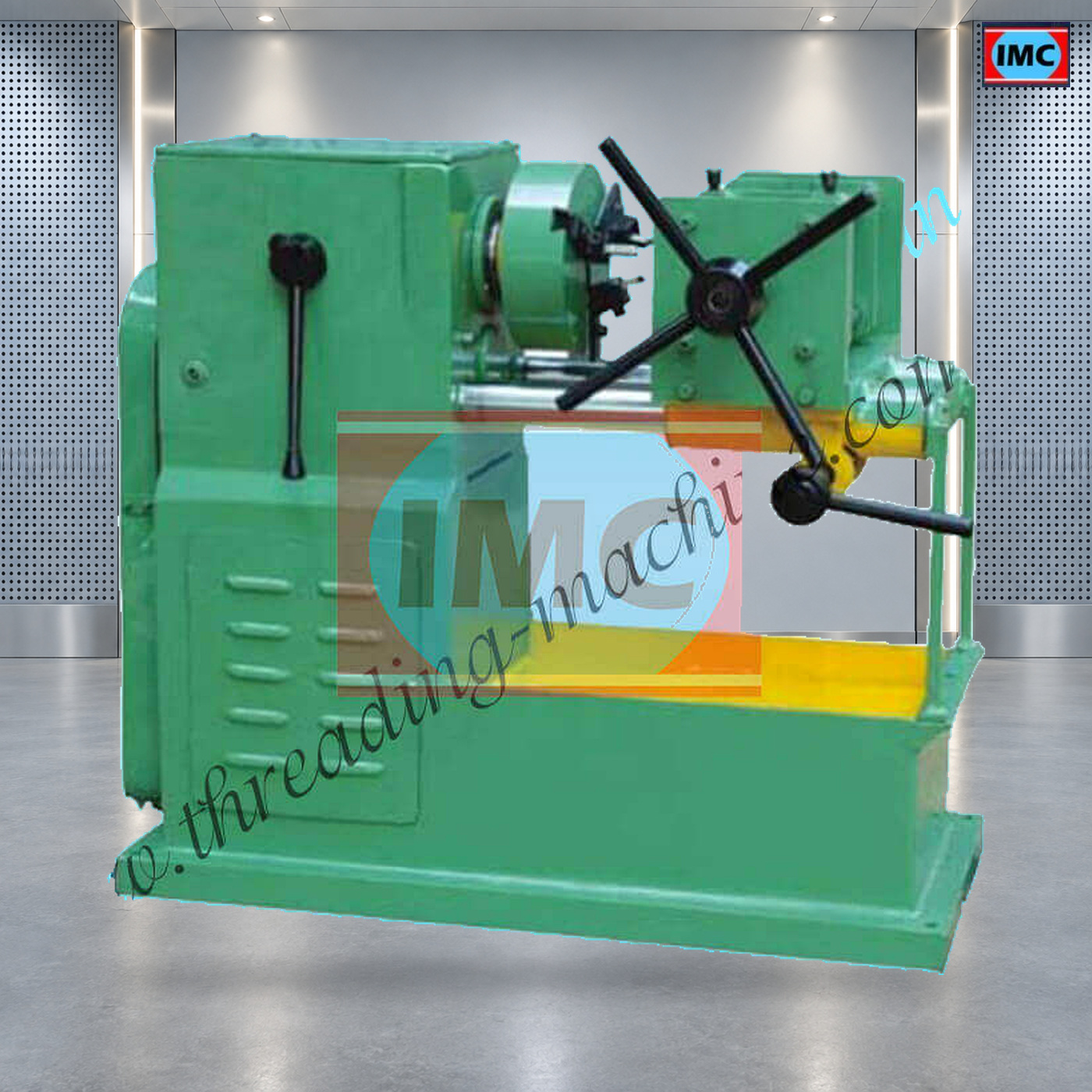

Pipe End Facing Machine by Industrial Machinery Corporation

Pipe End Facing Machine by Industrial Machinery Corporation thumbnail

Review Pipe End Facing Machine for your component and the required production operation.

Start with the tooling interface

To prepare pipe ends through the specified facing, chamfering or deburring operation, the proposed machine and tooling must suit the complete component requirement. Review cutters, pipe holding, end location and access to the surfaces being prepared. Existing tools should be identified by model, dimensions or a sample rather than only a familiar name.

Set up around the finished drawing

Provide pipe material, diameter, wall thickness and the finished end-profile drawing. Discuss how the component is presented and what adjustments are required when a size changes. Show the required end profile clearly; facing, chamfering and deburring are related but distinct operations. Ask which fixtures or tool sets are included for the initial job and whether the remaining sizes need additional equipment.

Verify the trial and specify the offer

Check a representative result for face geometry, chamfer dimensions where required and removal of unwanted burrs. Identify the measurement or inspection requirements with the drawing. A trial should use the intended material and stock condition so that setup decisions apply to the real job. Include batch quantities, site utilities and delivery details with the selected quotation options. The offer should state the model, tooling, accessories and changeover arrangements against those requirements.

Information to send with your enquiry

Pipe material
Diameter
Wall thickness and the finished end-profile drawing

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Available options

Select the required options and add this machine to your quotation.

Available Options

Maximum Length Required

Min And Max Diameter of the Job

Expected Price

Purchase

Your selected configuration is stored in the existing Quote List flow for review before enquiry.

VIDEO REFERENCE

Machine Videos Gallery

No product-specific playlist is stored for this item yet. View IMC machine demonstrations and production videos in the main gallery.

View Machine Videos

TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

The quality of machines that we have been making since our establishment ten years back has been matchless and unparalleled. It is due to this habit of supplying all our clients with best quality industrial machines, we are acknowledged as the best industrial machines manufacturing company in India. We have a wide range of industrial machines which are admired as well as used by companies from all over the world. We have this habit inbuilt into our soul to provide the clients with the best in the business. We have this unique talent to adapt as per the client’s liking and gel with his requirements to give exactly what the client has asked for. For this we use all the latest skills, technologies, techniques, machines, computer systems at our Ludhiana based manufacturing unit. Our clients are fully aware of this habit of industrial machinery corporation and that’s why they prefer to buy machines made by us than any other manufacturer of India. We have a whole range of industrial machines and one of the machines that have impressed most of the users is the Pipe End Facing Machine. Our Pipe End Facing Machine is the most used machine by companies from the countries like USA, Mexico, Brazil, Venezuela, Ecuador, Korea, Turkey, India, UAE, Malaysia, Indonesia, Iran, Uzbekistan, Kazakhstan, Vietnam, Cambodia, Thailand, Syria, Jordan, Pakistan, Kuwait, Iraq, Nigeria, Egypt, Sudan, Ethiopia, Kenya, Tunis, South Africa, Ukraine, Russia, Belarus, Italy, Belgium, Macedonia and Greece. Apart from these countries, there are many other countries from where we are getting regular orders for Pipe End Facing Machine.

A Pipe End Facing Machine is used in factories and tool rooms for chamfering and debarring of pipes before they are galvanized or taken for threading process. Our Pipe End Facing Machine is equipped with three different kinds of tools and uses these different tools for chamfering a pipe from in, out and front. The Pipe End Facing Machine is also called pipe chamfering machine and this machine works on chasing principle and as per this principle, the Pipe End Facing Machine allows the pipe to remain stable at one place and allows the facing head to rotate around the pipe and perform the entire operation. In the Pipe End Facing Machine which is run using manual transmission the slide moves towards facing head for the process of chamfering. A Pipe End Facing Machine is made up using the following components.

Base
Head stock
Saddle
Clamping vice

The Pipe End Facing Machine made at our production unit in Ludhiana has the capability to cut the bevels with most accuracy to prepare any joint for welding both on heavy and thin walls. This Pipe End Facing Machine is a hydraulic driven machine and uses positive gear to cut the bevels on the pipes. Apart from working in hydraulic mode, Pipe End Facing Machine can also run on the power of diesel and electricity. Our Pipe End Facing Machine or pipe chamfering machine is easily available in shops across India as well on various portals on the internet. This Pipe End Facing Machine is available in different variants for chamfering of pipes ranging from 16” [404 millimeters] to 60” [1524 millimeters].

Specifications:

Model No.	IMC-EM- 1/2" to 1.1/2"	IMC-BM-1/2" to 4"
Min. Dia of Pipe to be Chamfered	1/2" N.B. Pipe	1/2"
Max. Dia of Pipe to be Chamfered	1.1/2"	4"
Cutting Tools Required (HSS 10% Cobalt)	3/8"	3/8"
Number of Spindle Speeds	Two nos.	Four nos.
Range of Spindle Speeds	37 to 64 RPM	68 to 180 RPM
Main Motor	3 H.P. 1440 RPM	3 H.P. 1440 RPM
Approx. Wt. of the Machine	750 Kgs.	1100 Kgs

Frequently Asked Questions About Pipe End Facing Machine

Which job information helps IMC assess pipe end facing machine?

Please identify pipe dimensions and end-face requirements. Add the finished drawing, expected batch size and available electrical supply. IMC can then discuss the model and the supporting equipment for that particular job.

What should the supply discussion cover for pipe end facing machine?

Agree the configuration against pipe dimensions and end-face requirements, then confirm the tooling, workholding and accessories included. Any support, installation or spare-tool needs should be listed with the enquiry so the scope is clear.

How can I compare the pipe end facing machine with my existing process?

Use the specifications and demonstration videos alongside your current component drawing. Record pipe dimensions and end-face requirements, the stages before and after this operation, and your desired output; that comparison gives IMC a useful basis for reviewing the change.
