Internal Thread Tapping Machine – Tooling & Setup

Internal Pipe Threading Machine by Industrial Machinery Corporation
PRICE & QUOTATION
Starting From US$ 3,500
Choose options
Set quantity
Request quotation

Select the required model and specifications to request your quotation.

Review Internal Thread Tapping Machine for your component and the required production operation.

Start with the tooling interface

To make internal threads by tapping prepared holes in compatible pipes and bored rod components, the proposed machine and tooling must suit the complete component requirement. Review tap selection, tap holding, component alignment and chip-clearance arrangements. Existing tools should be identified by model, dimensions or a sample rather than only a familiar name.

Set up around the finished drawing

Provide hole diameter and depth, blind or through-hole form, material, thread standard and pitch. Discuss how the component is presented and what adjustments are required when a size changes. Rod tapping here means an internal thread in a prepared bore, rather than external threading of a solid rod. Ask which fixtures or tool sets are included for the initial job and whether the remaining sizes need additional equipment.

Verify the trial and specify the offer

Check a representative result for internal thread size, useful depth and acceptance with the specified gauge or mating thread. Identify the measurement or inspection requirements with the drawing. A trial should use the intended material and stock condition so that setup decisions apply to the real job. Include batch quantities, site utilities and delivery details with the selected quotation options. The offer should state the model, tooling, accessories and changeover arrangements against those requirements.

Information to send with your enquiry

  • Hole diameter and depth
  • Blind or through-hole form
  • Material
  • Thread standard and pitch

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Tags

Threading Machines, Internal Pipe Threading Machine, Threading Taps, Internal Threading tap, internal threading tools, Internal Threading Machine
CONFIGURE YOUR MACHINE

Available options

Select the required options and add this machine to your quotation.

Available Options


Your selected configuration is stored in the existing Quote List flow for review before enquiry.

Product Videos

View full playlist on YouTube
TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

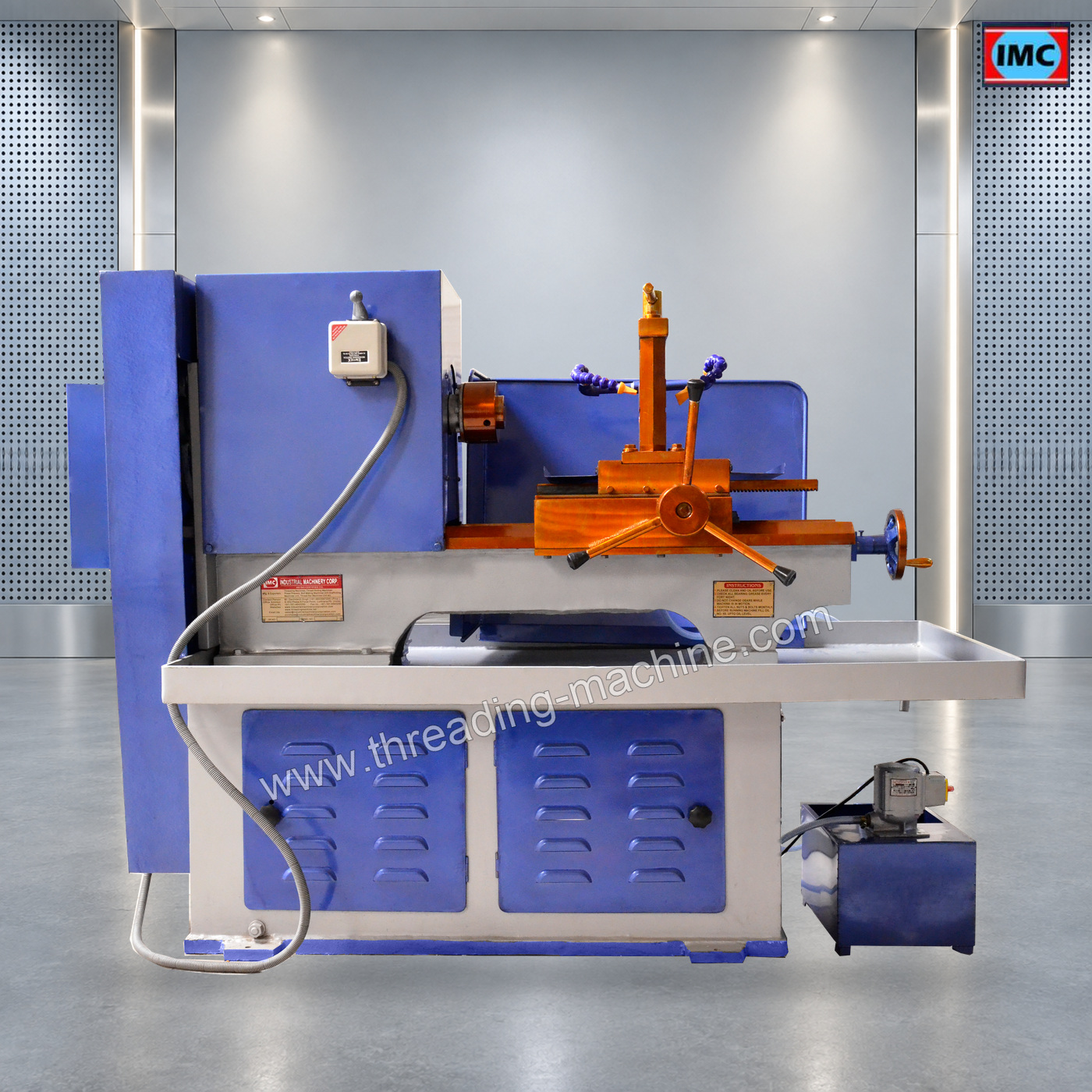

Internal Pipe Threading Machine

Industrial Machinery Corporation has made its divergent reputation in the field of industrial machine manufacturing and all the credit goes to the quality of machines that we have been supplying to our clients since our formation in 2011. For more than 7 years now, we are working continuously for providing the clients with best of industrial machine and we are applying not only our mind and body but our soul as well to achieve the quality that we have been acclaimed for. Our machines have a higher level of eminence in the world market owing to their qualities like robustness, easy-to-use, handiness, efficiency, design, competency, and nimbleness. Because we take full note of what are the exact demands of a client and try and customize our Internal Pipe Threading Machine in a way that suits the clients, we and our bar threading machines have been in the demand more than any other brand. The raw material that we use to make these machines is hand-picked by our experts who bring it at our manufacturing unit and prior of using it, check again if there is any sort of fault or defect. On discovery of any deficiency, the part is immediately removed from the place. When it comes to maintaining the quality of the finished products, our workers remain stiff towards maintaining it. Harsh competition and increased demand have helped us in a positive way as due to the competition we always strive to be better than others and in this pursuit, we have developed ourselves as the best from all.

Among many machines that we built here, the Internal Pipe Threading Machine holds a special place and reputation as the best Internal Pipe Threading Machine of India. It has all the qualities that an industrialist may look for in his Internal  Pipe Threading Machine. Another reason, why these particular Internal Pipe Threading Machine have gained us popularity as the set-up of these machines allows the designers to customize it totally to make it fit and competent with the client’s specific requirements and comfort-level while operation. Despite getting completely customized, there are no changes in the performance of this Internal Threading Machine as it gives the cutting limit up to 150 millimeters in any case. This Internal Threading Machine is strongly made and the five-speed gearbox ensures that the Internal Threading Machine is working really fast and threading more than 100 pipes in an hour. The use of finest quality raw material ensures that the Internal Threading Machine is masculine enough to work efficiently and non-stop on this speed also. The Internal Threading Machine built by us is extremely operator-friendly when it comes to operating the machine

Here are the names of two standard features that a buyer would get in his Internal Threading Machine made as industrial machinery corporation.
  • Trapezoidal thread (as per IS - 12818)
  • Square Thread
Apart from abovementioned features, several other features are found in the internal Threading Machine made by us at our unity.
  • Simplicity in Operation (Layman can Operate)
  • Robustness and Studied design
  • AC Servo and PLC operated
  • Fast threading compared to conventional threading machine
  • No setting is required for different pipe diameter
  • No change of saw for internal and external thread

Internal Pipe Threading Machine Specifications:

Model No.  1/2" to 2" 1/2" to 3"
Threading length can be cut 150 MM 150 MM
Number of speed in gear box 5 5
Production per hour 80 Pcs. 80 Pcs.
Electrical Motor 3 H.P. 960 RPM 5 H.P. 960 RPM


Frequently Asked Questions About Internal Pipe Threading Machine

Please identify bore, internal thread length and access. Add the finished drawing, expected batch size and available electrical supply. IMC can then discuss the model and the supporting equipment for that particular job.

Agree the configuration against bore, internal thread length and access, then confirm the tooling, workholding and accessories included. Any support, installation or spare-tool needs should be listed with the enquiry so the scope is clear.

Use the specifications and demonstration videos alongside your current component drawing. Record bore, internal thread length and access, the stages before and after this operation, and your desired output; that comparison gives IMC a useful basis for reviewing the change.
